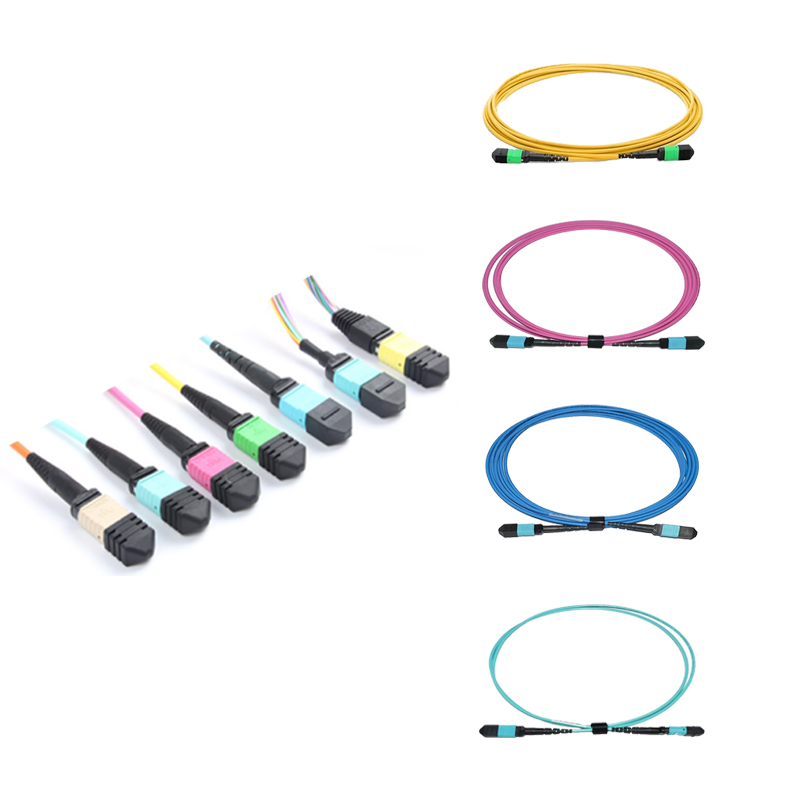

MTP/MPO Fiber Optic Trunk Cables

其他信息

MTP/MPO trunk cabling connects MTP/MPO modules together as a permanent link. They facilitate rapid deployment of high-density backbone cabling in data centers and other high-density fiber environments, reducing network installation or reconfiguration time and cost. Its efficient plug-and-play structure greatly reduces the initial installation and routine maintenance costs. Pre-terminated trunk cables can also be used with plug-and-play modules or MTP/MPO connector panels to achieve multi-level connection. Pre-terminated trunk cable can also be extended by MTP/MPO panel with the plug-and-play module. They are used to interconnect module cassettes, panels or ruggedized MTP/MPO fanouts, spanning MDA, HDA and EDA zones.
Low insertion loss and high return loss
High precision MPO/MTP connector
PC UPC APC end face polish
Up to 288 fibers-ideal for high density applications
100% factory terminated and tested
Pulling eyes are provided as an option to protect the fiber ends during installation
Save installation and reconfiguration time
Customized length available
ROHS Compliant

Performance			Standard		Elite
Connector	Mode	Endface	IL(max) (dB)	RL(min) (dB)	IL(max) (dB)	RL(min) (dB)
MPO/MTP	SM	12F/APC	≤0.70	≥60	≤0.35	≥60
		24F/APC	≤0.75	≥60	≤0.35	≥60
		48F/APC	≤0.75	≥60
	MM	12F/PC	≤0.50	≥20	≤0.35	≥20
		24F/PC	≤0.50	≥20	≤0.35	≥20
		48F/PC	≤0.50	≥20

Note: 1.Test wavelength:SM@1310/1550nm,MM@850/1300nm; 2.Standard conformance: GR-326,GR-1435.
