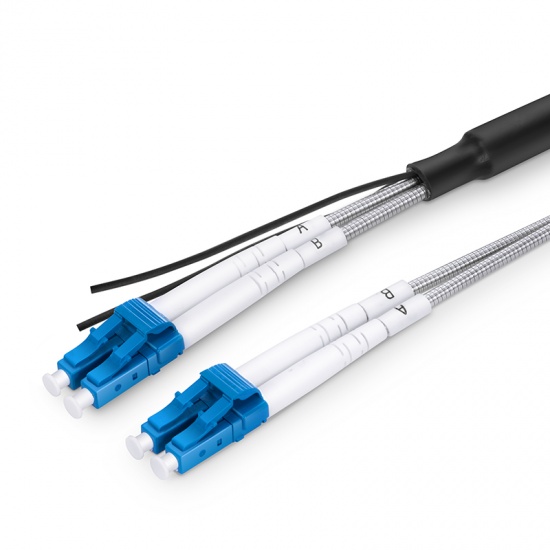

CPRI fiber patch cord for the new generation wireless base stations(WCDMA/TD-SCDMA/WiMax/GSM). It can meet the FTTA(fiber to the top of the tower) and FTTH program requirements for outdoor environment conditions and adverse weather conditions. Especially in the 3G, 4G, 5G, and WiMax base stations and Remote Radio Head cell tower applications.
| Mode | Singlemode | Multimode | |
| Polish | UPC | APC | PC |
| Insertion Loss | ≤0.30dB | ≤0.30dB | ≤0.30dB |
| Return Loss | ≥50dB | ≥60dB | ≥35dB |
| Test Wavelength | 1310/1550nm | 850/1310nm | |
| Durability | 500 Matings | ||
| Operating Temperature | -40℃ )~+85℃ | ||
| Storage Temperature | -40℃ )~+85℃ | ||
| Standards-Compliant | ROHS, IEC and GR-326 | ||
| Fiber type | Singlemode: | 9 /125 G652D | 9/125 G655 | 9/125 G657A,G657A2 | 9/125 G657B3 | |
| Multimode: | 62.5/125 OM1 | 50/125 OM2 | 50/125-OM3 | 50/125 OM4 | 50/125 OM5 | |
| Fiber Brand | YOFC, Corning | |||||
| Connector Type | CPRI LC/SC/FC/ST | |||||
| Cord type | 1/2/4/6/8/12/24 Cores | |||||
| Cable diameter | 3.0mm/4.8mm/5.0mm/7.0mm/9.0mm | |||||
| Cable jacket | LSZH/PE | |||||
Xiamen LHDE Co., Ltd. produce the fiber optical patch cords, cables, patch panels, and adapters, etc.
