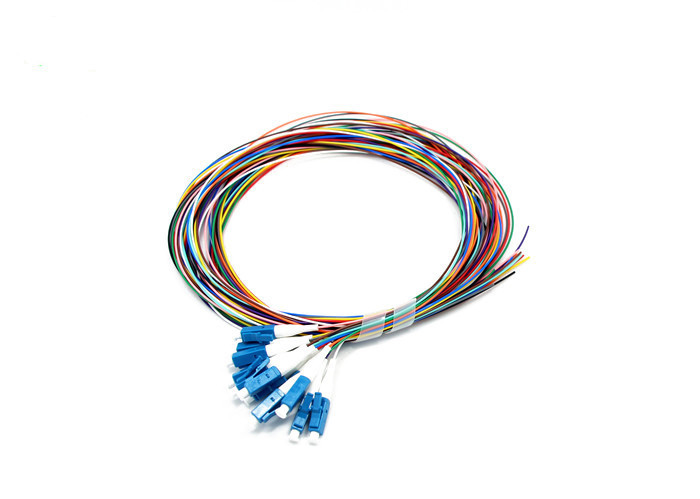

The fiber optic pigtail is normally a tight/Tight buffered fiber cable with a connector pre-terminated on one end and exposed fiber on the other. The end is stripped and fusion spliced to a single or multi-fiber trunk. When utilized properly, the fiber optic pigtail allows light signal transmission with minimal return loss and low attenuation. Make sure your network is reinforced with Our fiber pigtails, as ours are manufactured of superior quality materials.
Mode | Singlemode | Multimode | |
Polish | UPC | APC | PC |
Insertion Loss | ≤0.30dB | ≤0.20dB | ≤0.20dB |
Return Loss | ≥50dB | ≥60dB | ≥35dB |
Test Wavelength | 1310/1550nm | 850/1310nm | |
Durability(500 Matings) | ≤0.2dB | ||
Operating Temperature | -40℃~+60℃ | ||
Storage Temperature | -45℃~+85℃ | ||
Fire Resistant | IEC 60794-2-30 | ||
Standards-Compliant | ROHS, IEC, and GR-326 |
Fiber type | Singlemode: | 9/125-G652D | 9/125-G655 | 9/125-G657A,G657A2 | 9/125-G657B3 | |
Multimode: | 62.5/125-OM1 | 50/125-OM2 | 50/125-OM3 | 50/125-OM4 | 50/125-OM5 | |
Fiber Brand | YOFC, Corning | |||||
Connector | SC/PC, SC/APC, LC/PC, LC/APC, FC/PC, FC/APC, ST/PC, E2000/PC, E2000/APC, MU/PC, MTRJ/Female, MTRJ/Male, DIN/PC, SMA/PC, D4/PC | |||||
Cord type | Simplex ,Duplex, 12f, 24f, 48f, 72f, 96f, etc. | |||||
Cable diameter | 0.9mm ,1.2mm, 1.6mm, 1.8mm, 2.0mm, 2.8mm, 3.0mmm, 5.0mm, 7.0mm etc. | |||||
Cable jacket | PVC, OFNR, LSZH, OFNP, TPU |
